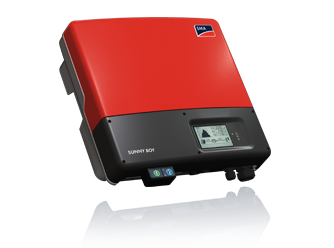

Sunny Boy 3000TL
The device include SMA technologies such as OptiTrac or H5-Topology - and with 97% offer a first class efficiency. They can be very easily adjusted for different countries, are easy to install and communicate wirelessly using Bluetooth.
Advanced technology
- Max. efficiency of 97% with wide input voltage range
- Integrated DC circuit breaker Electronic Solar Switch (ESS)
- Transformerless with H5 topology
- OptiCool cooling system
- OptiTrac MPP control
- Multi-String technology
Easy installation
- Easily accessible connection area
- Cabling without tools
- Ergonomic design
Worldwide use
- Simple Country Configuration
- Multi-language display
- Comprehensive SMA Warranty program
Communication
- Bluetooth technology
- Graphic display
| Input (DC) | 3000TL* |
| Max. DC-voltage | 550 V |
| Max. input current | 17 A |
| Quantity MPP-Trackers | 1 |
| Output (AC) | |
| Max. AC-power | 3000 W |
| Nominal AC voltage | 220 V - 240 V |
| AC grid frequency | 50 Hz / 60 Hz |
| Efficiency | |
| Max. efficiency | 97.00% |
| Euro-eta | 96.00% |
| Protection Device | |
| Integrated DC-Circuit breaker ESS | yes |
| General Data | |
| Operating temperature range | -25° C - +60 ° C |
| Topology | Transformerless |
| Cooling concept | OptiCool |
| Mounting location: indoor / outdoor (IP65) | yes / yes |
| Configuration | |
| LCD-Display | yes (Graphic display) |
| Interfaces: RS485/remote wireless | opt. / yes (Bluetooth) |
| * Technical data provisional. Delivery time on request. | |
